SINGLE-TANK RACK CONVEYOR MACHINE STR-110

Next > >

Send Inquiry

Product Code : STR110

Brand Name : Winterhalter

Product Description

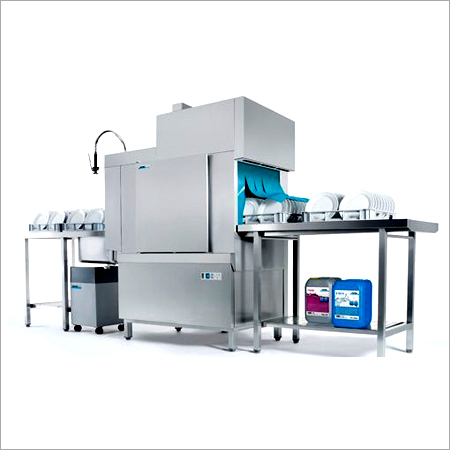

Winterhalter Str - 110 Single-tank Rack Conveyor Machine

With true expectations to save and elevate our notoriety in the business sector, we as a prime exporter, importer, importer and supplier deliver a recognized variety of Winterhalter Str - 110 Single-tank Rack Conveyor Machine. Solid in configuration, offered machine is generally used for passing on purposes. We plan this machine by utilizing premium quality parts and the most recent innovation in consistence with industry set standards. Being a quality centered organization, we guarantee our customers that this Winterhalter Str - 110 Single-tank Rack Conveyor Machine is thoroughly kept an eye on assorted parameters by our quality specialists.

Features:

Hassle free functioning
High proficiency
Simplicity of establishment

Description of product

Single-Tank Rack Conveyor Machine.

Compact and high performance solutions.

The STR series of single-tank rack conveyors, deliver a high performance and offer a great deal of power in a compact size.
A powerful wash system with perfectly calibrated components provides the best wash results in a short time. The single tank rack conveyor offers sufficient and flexible capacity for increased loads.
The compact dimensions and varied set-up options means the STR can even fit into small or angled rooms.
In addition, the rack controlled zone activation ensure economical consumption and low operating costs.

Technical Data - Single Tank Rack Conveyor STR 110

Technical Information	Unit	Standard	Energy
Theoretic capacity	[Racks/h]	70 / 110	70 / 110
Length with/without drying zone	[mm]	1,300 / 2,000	1,300 / 2,000
Depth closed/open	[mm]	800 / 1,472	800 / 1,472
Height with/without extraction supports	[mm]	1,420 / 1,600	1,890 / 1,890
Working height	[mm]	900	900
Passage height	[mm]	460	460
Pass-through width	[mm]	460	460
Rack dimensions	[mm]	500 x 500	500 x 500
Rinse water volume*	[l]	260	260
Tank temperature	[Ã‚Â°C]	55 - 65	55 - 65
Boiler temperature	[Ã‚Â°C]	85	85
Water inlet temperature:	[Ã‚Â°C]	10 - 20	Max. 20
Total connection value	[kW]	36.5	30.7
